3,0M Wasabi 2

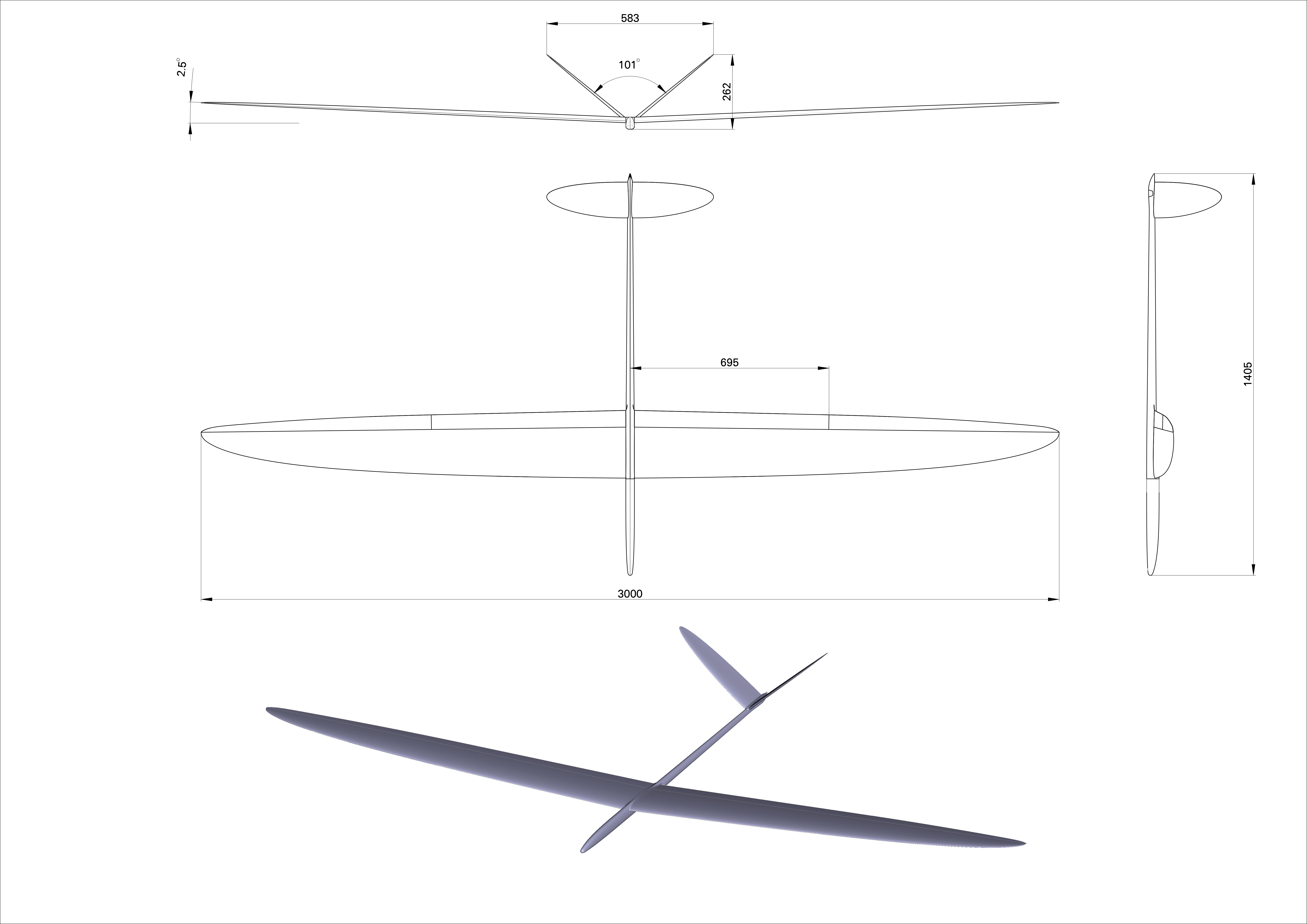

Specifications:

Wingspan: 3000mm
Lenght: 1400mm
Weight: 2200-2600g
FAI max: 4613g
Wing area: 55,96dm2
V-tail area: 5,55dm2

Recommended versions for gliders:
C80/40 - F3G (2200g)
C160/C80 – F3F strong conditions (2450g)
C80/C80 – F3F leight conditions (2350g)
C160/C160 – DS flying (2600g)
HM – The optimal sports version (2250g)
The weights given are approximate…

V-tail design is possible only in one colour(without stripes, schemes etc.)

Main settings - By Pierre Rondel

CG: 99 - 101 mm from the leading edge

• Elevator: +/- 6 mm

• Rudder: +/- 7 mm

• Aileron Quadroflaps:

• Ailerons: 26mm up / 13mm down

• Flaps: 8mm up / 4 mm down

• Snapflaps: 3mm to 4mm full stick (flaps and ailerons)

• Thermal position

• Flaps: 3mm down

• Ailerons aligned with flaps

• Speed position

• Flaps: 1mm up

• Ailerons aligned with flaps

• Crow brakes

• Flaps: 39mm down

• Ailerons: 25mm up

• Elevator: 4mm down

The model kit contains : -Finalized Wiring                                                                        - LDS with frames and linkages                                                                        - Vtail linkage                                                                                                        - Nose lead
